Documentation for Digital Construction Material Passport (DCMP)
Definition Type: ComplexType
Name: ContentItemType
Containing Schema: DCMP.xsd
Abstract

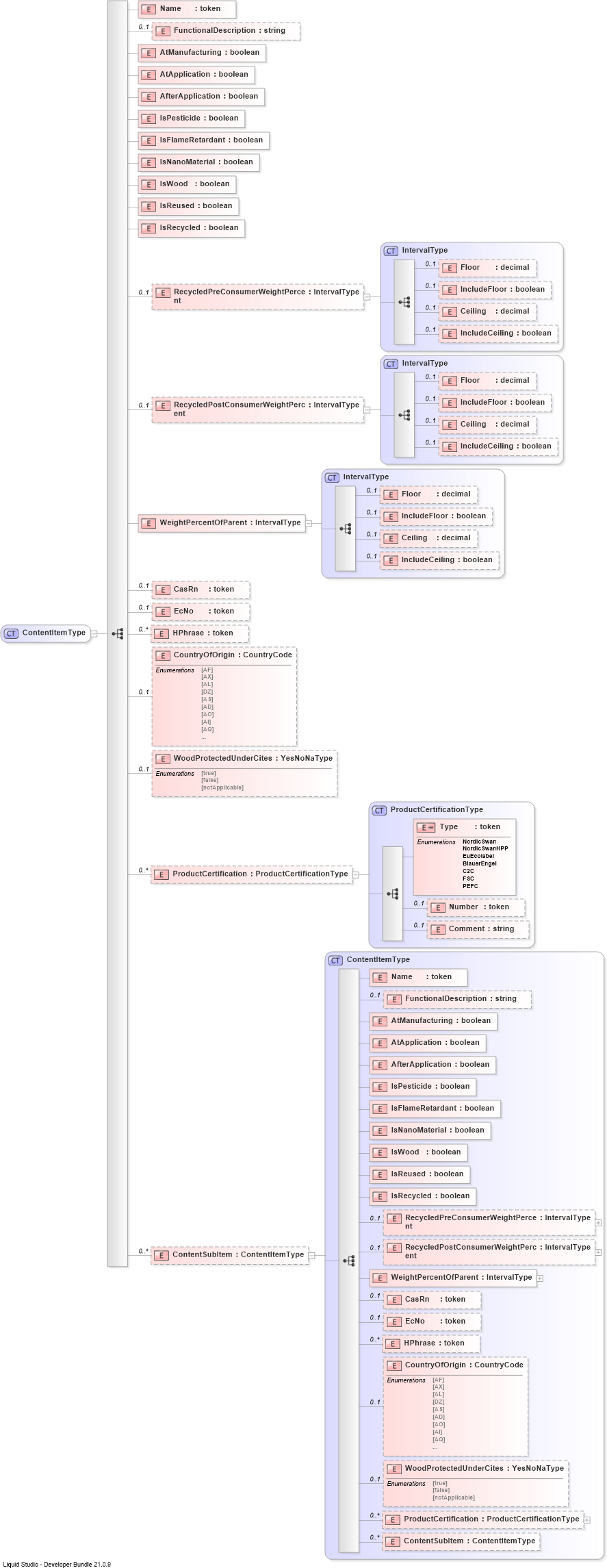

Collapse XSD Schema Diagram:
Drilldown into ContentSubItemDrilldown into ProductCertificationDrilldown into WoodProtectedUnderCitesDrilldown into CountryOfOriginDrilldown into HPhraseDrilldown into EcNoDrilldown into CasRnDrilldown into WeightPercentOfParentDrilldown into RecycledPostConsumerWeightPercentDrilldown into RecycledPreConsumerWeightPercentDrilldown into IsRecycledDrilldown into IsReusedDrilldown into IsWoodDrilldown into IsNanoMaterialDrilldown into IsFlameRetardantDrilldown into IsPesticideDrilldown into AfterApplicationDrilldown into AtApplicationDrilldown into AtManufacturingDrilldown into FunctionalDescriptionDrilldown into NameDrilldown into ContentSubItemDrilldown into CommentDrilldown into NumberDrilldown into TypeDrilldown into ProductCertificationTypeDrilldown into ProductCertificationDrilldown into WoodProtectedUnderCitesDrilldown into CountryOfOriginDrilldown into HPhraseDrilldown into EcNoDrilldown into CasRnDrilldown into IncludeCeilingDrilldown into CeilingDrilldown into IncludeFloorDrilldown into FloorDrilldown into IntervalTypeDrilldown into WeightPercentOfParentDrilldown into IncludeCeilingDrilldown into CeilingDrilldown into IncludeFloorDrilldown into FloorDrilldown into IntervalTypeDrilldown into RecycledPostConsumerWeightPercentDrilldown into IncludeCeilingDrilldown into CeilingDrilldown into IncludeFloorDrilldown into FloorDrilldown into IntervalTypeDrilldown into RecycledPreConsumerWeightPercentDrilldown into IsRecycledDrilldown into IsReusedDrilldown into IsWoodDrilldown into IsNanoMaterialDrilldown into IsFlameRetardantDrilldown into IsPesticideDrilldown into AfterApplicationDrilldown into AtApplicationDrilldown into AtManufacturingDrilldown into FunctionalDescriptionDrilldown into NameXSD Diagram of ContentItemType
Collapse XSD Schema Code:
<xs:complexType name="ContentItemType">
    <xs:sequence>
        <xs:element name="Name" type="xs:token" />
        <xs:element name="FunctionalDescription" type="xs:string" minOccurs="0" maxOccurs="1" />
        <xs:element name="AtManufacturing" type="xs:boolean" />
        <xs:element name="AtApplication" type="xs:boolean" />
        <xs:element name="AfterApplication" type="xs:boolean" />
        <xs:element name="IsPesticide" type="xs:boolean" />
        <xs:element name="IsFlameRetardant" type="xs:boolean" />
        <xs:element name="IsNanoMaterial" type="xs:boolean" />
        <xs:element name="IsWood" type="xs:boolean" />
        <xs:element name="IsReused" type="xs:boolean" />
        <xs:element name="IsRecycled" type="xs:boolean" />
        <xs:element name="RecycledPreConsumerWeightPercent" type="IntervalType" minOccurs="0" maxOccurs="1" />
        <xs:element name="RecycledPostConsumerWeightPercent" type="IntervalType" minOccurs="0" maxOccurs="1" />
        <xs:element name="WeightPercentOfParent" type="IntervalType" />
        <xs:element name="CasRn" type="xs:token" minOccurs="0" maxOccurs="1" />
        <xs:element name="EcNo" type="xs:token" minOccurs="0" maxOccurs="1" />
        <xs:element name="HPhrase" type="xs:token" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="CountryOfOrigin" type="CountryCode" minOccurs="0" maxOccurs="1" />
        <xs:element name="WoodProtectedUnderCites" type="YesNoNaType" minOccurs="0" maxOccurs="1" />
        <xs:element name="ProductCertification" type="ProductCertificationType" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="ContentSubItem" type="ContentItemType" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Name Name (1) (1)
FunctionalDescription FunctionalDescription 0 1
AtManufacturing AtManufacturing (1) (1)
AtApplication AtApplication (1) (1)
AfterApplication AfterApplication (1) (1)
IsPesticide IsPesticide (1) (1)
IsFlameRetardant IsFlameRetardant (1) (1)
IsNanoMaterial IsNanoMaterial (1) (1)
IsWood IsWood (1) (1)
IsReused IsReused (1) (1)
IsRecycled IsRecycled (1) (1)
RecycledPreConsumerWeightPercent RecycledPreConsumerWeightPercent 0 1
RecycledPostConsumerWeightPercent RecycledPostConsumerWeightPercent 0 1
WeightPercentOfParent WeightPercentOfParent (1) (1)
CasRn CasRn 0 1
EcNo EcNo 0 1
HPhrase HPhrase 0 unbounded
CountryOfOrigin CountryOfOrigin 0 1
WoodProtectedUnderCites WoodProtectedUnderCites 0 1
ProductCertification ProductCertification 0 unbounded
ContentSubItem ContentSubItem 0 unbounded
Collapse Derivation Tree:
Collapse References:
ContentItemContentSubItem,
