Documentation for Digital Construction Material Passport (DCMP)
Definition Type: Element
Name: ContentItem
Type: ContentItemType
Containing Schema: DCMP.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

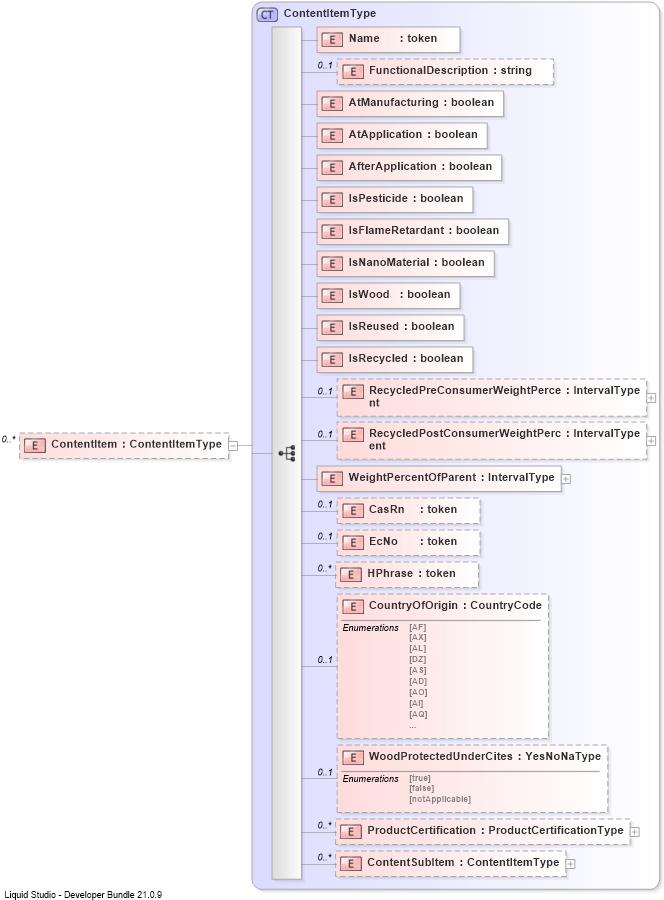

Collapse XSD Schema Diagram:
Drilldown into ContentSubItemDrilldown into ProductCertificationDrilldown into WoodProtectedUnderCitesDrilldown into CountryOfOriginDrilldown into HPhraseDrilldown into EcNoDrilldown into CasRnDrilldown into WeightPercentOfParentDrilldown into RecycledPostConsumerWeightPercentDrilldown into RecycledPreConsumerWeightPercentDrilldown into IsRecycledDrilldown into IsReusedDrilldown into IsWoodDrilldown into IsNanoMaterialDrilldown into IsFlameRetardantDrilldown into IsPesticideDrilldown into AfterApplicationDrilldown into AtApplicationDrilldown into AtManufacturingDrilldown into FunctionalDescriptionDrilldown into NameDrilldown into ContentItemTypeXSD Diagram of ContentItem
Collapse XSD Schema Code:
<xs:element name="ContentItem" type="ContentItemType" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Name Name (1) (1)
FunctionalDescription FunctionalDescription 0 1
AtManufacturing AtManufacturing (1) (1)
AtApplication AtApplication (1) (1)
AfterApplication AfterApplication (1) (1)
IsPesticide IsPesticide (1) (1)
IsFlameRetardant IsFlameRetardant (1) (1)
IsNanoMaterial IsNanoMaterial (1) (1)
IsWood IsWood (1) (1)
IsReused IsReused (1) (1)
IsRecycled IsRecycled (1) (1)
RecycledPreConsumerWeightPercent RecycledPreConsumerWeightPercent 0 1
RecycledPostConsumerWeightPercent RecycledPostConsumerWeightPercent 0 1
WeightPercentOfParent WeightPercentOfParent (1) (1)
CasRn CasRn 0 1
EcNo EcNo 0 1
HPhrase HPhrase 0 unbounded
CountryOfOrigin CountryOfOrigin 0 1
WoodProtectedUnderCites WoodProtectedUnderCites 0 1
ProductCertification ProductCertification 0 unbounded
ContentSubItem ContentSubItem 0 unbounded
Collapse Derivation Tree:
