Documentation for Digital Construction Material Passport (DCMP)
Definition Type: Element
Name: MaterialPassport
Containing Schema: DCMP.xsd
Abstract

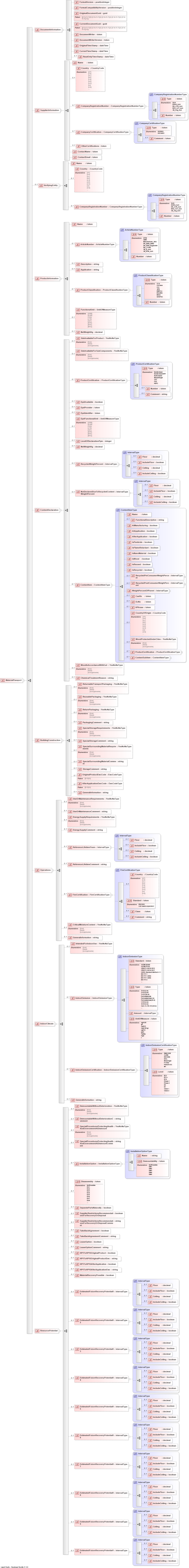

Collapse XSD Schema Diagram:
Drilldown into IncludeCeilingDrilldown into CeilingDrilldown into IncludeFloorDrilldown into FloorDrilldown into IntervalTypeDrilldown into EstimatedFutureRecoveryPotential10Drilldown into IncludeCeilingDrilldown into CeilingDrilldown into IncludeFloorDrilldown into FloorDrilldown into IntervalTypeDrilldown into EstimatedFutureRecoveryPotential09Drilldown into IncludeCeilingDrilldown into CeilingDrilldown into IncludeFloorDrilldown into FloorDrilldown into IntervalTypeDrilldown into EstimatedFutureRecoveryPotential08Drilldown into IncludeCeilingDrilldown into CeilingDrilldown into IncludeFloorDrilldown into FloorDrilldown into IntervalTypeDrilldown into EstimatedFutureRecoveryPotential07Drilldown into IncludeCeilingDrilldown into CeilingDrilldown into IncludeFloorDrilldown into FloorDrilldown into IntervalTypeDrilldown into EstimatedFutureRecoveryPotential06Drilldown into IncludeCeilingDrilldown into CeilingDrilldown into IncludeFloorDrilldown into FloorDrilldown into IntervalTypeDrilldown into EstimatedFutureRecoveryPotential05Drilldown into IncludeCeilingDrilldown into CeilingDrilldown into IncludeFloorDrilldown into FloorDrilldown into IntervalTypeDrilldown into EstimatedFutureRecoveryPotential04Drilldown into IncludeCeilingDrilldown into CeilingDrilldown into IncludeFloorDrilldown into FloorDrilldown into IntervalTypeDrilldown into EstimatedFutureRecoveryPotential03Drilldown into IncludeCeilingDrilldown into CeilingDrilldown into IncludeFloorDrilldown into FloorDrilldown into IntervalTypeDrilldown into EstimatedFutureRecoveryPotential02Drilldown into IncludeCeilingDrilldown into CeilingDrilldown into IncludeFloorDrilldown into FloorDrilldown into IntervalTypeDrilldown into EstimatedFutureRecoveryPotential01Drilldown into MaterialRecoveryPossibleDrilldown into HP1ToHP15AfterApplicationEwcDrilldown into HP1ToHP15AfterApplicationDrilldown into HP1ToHP15OriginalProductEwcDrilldown into HP1ToHP15OriginalProductDrilldown into LeaseOptionCommentDrilldown into LeaseOptionDrilldown into TakeBackAgreementCommentDrilldown into TakeBackAgreementDrilldown into SupplierRestrictionsRecommendationsForRecoveryOrDisposalCommentDrilldown into SupplierRestrictionsRecommendationsForRecoveryOrDisposalDrilldown into SeparatePartsNaturallyDrilldown into DisassemblyDrilldown into DemountabilityDrilldown into NameDrilldown into InstallationOptionTypeDrilldown into InstallationOptionDrilldown into SpecialProceduresProtectingHealthAndEnvironmentAtDismountCommentDrilldown into SpecialProceduresProtectingHealthAndEnvironmentAtDismountDrilldown into DemountableWithoutDeteriorationCommentDrilldown into DemountableWithoutDeteriorationDrilldown into ResourcePotentialDrilldown into GeneralInformationDrilldown into LevelDrilldown into TypeDrilldown into IndoorEmissionCertificationTypeDrilldown into IndoorEmissionCertificationDrilldown into UnitOfMeasureDrilldown into AmountDrilldown into TypeDrilldown into StandardDrilldown into IndoorEmissionTypeDrilldown into IndoorEmissionDrilldown into IntendedForIndoorUseDrilldown into IndoorClimateDrilldown into GeneralInformationDrilldown into CriticalMoistureContentDrilldown into CommentDrilldown into ClassDrilldown into StandardDrilldown into CountryDrilldown into FireCertificationTypeDrilldown into FireCertificationDrilldown into ReferenceLifetimeCommentDrilldown into IncludeCeilingDrilldown into CeilingDrilldown into IncludeFloorDrilldown into FloorDrilldown into IntervalTypeDrilldown into ReferenceLifetimeYearsDrilldown into EnergySupplyCommentDrilldown into EnergySupplyRequirementsDrilldown into UseOrMaintenanceCommentDrilldown into UseOrMaintenanceRequirementsDrilldown into OperationsDrilldown into GeneralInformationDrilldown into AfterApplicationEwcCodeDrilldown into OriginalProductEwcCodeDrilldown into StorageCommentDrilldown into SpecialSurroundingMaterialCommentDrilldown into SpecialSurroundingMaterialRequirementsDrilldown into SpecialStorageCommentDrilldown into SpecialStorageRequirementsDrilldown into PackagingCommentDrilldown into ReturnPackagingDrilldown into ReusablePackagingDrilldown into ReturnableTransportPackagingDrilldown into BuildingConstructionDrilldown into ChemicalTreatmentReasonDrilldown into WoodInAccordanceWithEutrDrilldown into ContentSubItemDrilldown into ProductCertificationDrilldown into WoodProtectedUnderCitesDrilldown into CountryOfOriginDrilldown into HPhraseDrilldown into EcNoDrilldown into CasRnDrilldown into WeightPercentOfParentDrilldown into RecycledPostConsumerWeightPercentDrilldown into RecycledPreConsumerWeightPercentDrilldown into IsRecycledDrilldown into IsReusedDrilldown into IsWoodDrilldown into IsNanoMaterialDrilldown into IsFlameRetardantDrilldown into IsPesticideDrilldown into AfterApplicationDrilldown into AtApplicationDrilldown into AtManufacturingDrilldown into FunctionalDescriptionDrilldown into NameDrilldown into ContentItemTypeDrilldown into ContentItemDrilldown into IncludeCeilingDrilldown into CeilingDrilldown into IncludeFloorDrilldown into FloorDrilldown into IntervalTypeDrilldown into NotDeclaredDueToRecycledContentWeightPercentDrilldown into IncludeCeilingDrilldown into CeilingDrilldown into IncludeFloorDrilldown into FloorDrilldown into IntervalTypeDrilldown into RecycledWeightPercentDrilldown into NetWeightKgDrilldown into LevelOfDeclarationPpmDrilldown into EpdFunctionalUnitDrilldown into EpdIdentifierDrilldown into EpdProviderDrilldown into EpdAvailableDrilldown into CommentDrilldown into NumberDrilldown into TypeDrilldown into ProductCertificationTypeDrilldown into ProductCertificationDrilldown into SdsAvailableForSubComponentsDrilldown into SdsAvailableForProductDrilldown into ContentDeclarationDrilldown into NetWeightKgDrilldown into FunctionalUnitDrilldown into NumberDrilldown into TypeDrilldown into ProductClassificationTypeDrilldown into ProductClassificationDrilldown into ApplicationDrilldown into DescriptionDrilldown into NumberDrilldown into TypeDrilldown into ArticleNumberTypeDrilldown into ArticleNumberDrilldown into NameDrilldown into ProductInformationDrilldown into NumberDrilldown into TypeDrilldown into CompanyRegistrationNumberTypeDrilldown into CompanyRegistrationNumberDrilldown into CountryDrilldown into NameDrilldown into VerifyingEntityDrilldown into ContactEmailDrilldown into ContactNameDrilldown into OtherCertificationsDrilldown into CommentDrilldown into TypeDrilldown into CompanyCertificationTypeDrilldown into CompanyCertificationDrilldown into NumberDrilldown into TypeDrilldown into CompanyRegistrationNumberTypeDrilldown into CompanyRegistrationNumberDrilldown into CountryDrilldown into NameDrilldown into SupplierInformationDrilldown into ReadOnlyTimeStampDrilldown into CurrentTimeStampDrilldown into OriginalTimeStampDrilldown into DocumentWriterVersionDrilldown into DocumentWriterDrilldown into CurrentDocumentGuidDrilldown into OriginalDocumentGuidDrilldown into FormatCompatibilityVersionDrilldown into FormatVersionDrilldown into DocumentInformationXSD Diagram of MaterialPassport
Collapse XSD Schema Code:
<xs:element name="MaterialPassport">
    <xs:complexType>
        <xs:sequence>
            <xs:element name="DocumentInformation">
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="FormatVersion" type="xs:positiveInteger" />
                        <xs:element name="FormatCompatibilityVersion" type="xs:positiveInteger" />
                        <xs:element name="OriginalDocumentGuid" type="guid" />
                        <xs:element name="CurrentDocumentGuid" type="guid" />
                        <xs:element name="DocumentWriter" type="xs:token" />
                        <xs:element name="DocumentWriterVersion" type="xs:token" />
                        <xs:element name="OriginalTimeStamp" type="xs:dateTime" />
                        <xs:element name="CurrentTimeStamp" type="xs:dateTime" />
                        <xs:element name="ReadOnlyTimeStamp" type="xs:dateTime" minOccurs="0" maxOccurs="1" />
                    </xs:sequence>
                </xs:complexType>
            </xs:element>
            <xs:element name="SupplierInformation">
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="Name" type="xs:token" />
                        <xs:element name="Country" type="CountryCode" minOccurs="0" maxOccurs="1" />
                        <xs:element name="CompanyRegistrationNumber" type="CompanyRegistrationNumberType" minOccurs="0" maxOccurs="unbounded" />
                        <xs:element name="CompanyCertification" type="CompanyCertificationType" minOccurs="0" maxOccurs="unbounded" />
                        <xs:element name="OtherCertifications" type="xs:token" minOccurs="0" maxOccurs="1" />
                        <xs:element name="ContactName" type="xs:token" />
                        <xs:element name="ContactEmail" type="xs:token" />
                    </xs:sequence>
                </xs:complexType>
            </xs:element>
            <xs:element name="VerifyingEntity" minOccurs="0" maxOccurs="1">
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="Name" type="xs:token" />
                        <xs:element name="Country" type="CountryCode" minOccurs="0" maxOccurs="1" />
                        <xs:element name="CompanyRegistrationNumber" type="CompanyRegistrationNumberType" minOccurs="0" maxOccurs="unbounded" />
                    </xs:sequence>
                </xs:complexType>
            </xs:element>
            <xs:element name="ProductInformation">
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="Name" type="xs:token" />
                        <xs:element name="ArticleNumber" type="ArticleNumberType" minOccurs="0" maxOccurs="unbounded" />
                        <xs:element name="Description" type="xs:string" minOccurs="0" maxOccurs="1" />
                        <xs:element name="Application" type="xs:string" minOccurs="0" maxOccurs="1" />
                        <xs:element name="ProductClassification" type="ProductClassificationType" minOccurs="0" maxOccurs="unbounded" />
                        <xs:element name="FunctionalUnit" type="UnitOfMeasureType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="NetWeightKg" type="xs:decimal" minOccurs="0" maxOccurs="1" />
                    </xs:sequence>
                </xs:complexType>
            </xs:element>
            <xs:element name="ContentDeclaration">
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="SdsAvailableForProduct" type="YesNoNaType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="SdsAvailableForSubComponents" type="YesNoNaType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="ProductCertification" type="ProductCertificationType" minOccurs="0" maxOccurs="unbounded" />
                        <xs:element name="EpdAvailable" type="xs:boolean" minOccurs="0" maxOccurs="1" />
                        <xs:element name="EpdProvider" type="xs:token" minOccurs="0" maxOccurs="1" />
                        <xs:element name="EpdIdentifier" type="xs:token" minOccurs="0" maxOccurs="1" />
                        <xs:element name="EpdFunctionalUnit" type="UnitOfMeasureType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="LevelOfDeclarationPpm" type="xs:integer" minOccurs="0" maxOccurs="1" />
                        <xs:element name="NetWeightKg" type="xs:decimal" minOccurs="0" maxOccurs="1" />
                        <xs:element name="RecycledWeightPercent" type="IntervalType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="NotDeclaredDueToRecycledContentWeightPercent" type="IntervalType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="ContentItem" type="ContentItemType" minOccurs="0" maxOccurs="unbounded" />
                        <xs:element name="WoodInAccordanceWithEutr" type="YesNoNaType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="ChemicalTreatmentReason" type="xs:string" minOccurs="0" maxOccurs="1" />
                    </xs:sequence>
                </xs:complexType>
            </xs:element>
            <xs:element name="BuildingConstruction">
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="ReturnableTransportPackaging" type="YesNoNaType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="ReusablePackaging" type="YesNoNaType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="ReturnPackaging" type="YesNoNaType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="PackagingComment" type="xs:string" minOccurs="0" maxOccurs="1" />
                        <xs:element name="SpecialStorageRequirements" type="YesNoNaType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="SpecialStorageComment" type="xs:string" minOccurs="0" maxOccurs="1" />
                        <xs:element name="SpecialSurroundingMaterialRequirements" type="YesNoNaType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="SpecialSurroundingMaterialComment" type="xs:string" minOccurs="0" maxOccurs="1" />
                        <xs:element name="StorageComment" type="xs:string" minOccurs="0" maxOccurs="1" />
                        <xs:element name="OriginalProductEwcCode" type="EwcCodeType" minOccurs="0" maxOccurs="unbounded" />
                        <xs:element name="AfterApplicationEwcCode" type="EwcCodeType" minOccurs="0" maxOccurs="unbounded" />
                        <xs:element name="GeneralInformation" type="xs:string" minOccurs="0" maxOccurs="1" />
                    </xs:sequence>
                </xs:complexType>
            </xs:element>
            <xs:element name="Operations">
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="UseOrMaintenanceRequirements" type="YesNoNaType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="UseOrMaintenanceComment" type="xs:string" minOccurs="0" maxOccurs="1" />
                        <xs:element name="EnergySupplyRequirements" type="YesNoNaType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="EnergySupplyComment" type="xs:string" minOccurs="0" maxOccurs="1" />
                        <xs:element name="ReferenceLifetimeYears" type="IntervalType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="ReferenceLifetimeComment" type="xs:string" minOccurs="0" maxOccurs="1" />
                        <xs:element name="FireCertification" type="FireCertificationType" minOccurs="0" maxOccurs="unbounded" />
                        <xs:element name="CriticalMoistureContent" type="YesNoNaType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="GeneralInformation" type="xs:string" minOccurs="0" maxOccurs="1" />
                    </xs:sequence>
                </xs:complexType>
            </xs:element>
            <xs:element name="IndoorClimate">
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="IntendedForIndoorUse" type="YesNoNaType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="IndoorEmission" type="IndoorEmissionType" minOccurs="0" maxOccurs="unbounded" />
                        <xs:element name="IndoorEmissionCertification" type="IndoorEmissionCertificationType" minOccurs="0" maxOccurs="unbounded" />
                        <xs:element name="GeneralInformation" type="xs:string" minOccurs="0" maxOccurs="1" />
                    </xs:sequence>
                </xs:complexType>
            </xs:element>
            <xs:element name="ResourcePotential">
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="DemountableWithoutDeterioration" type="YesNoNaType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="DemountableWithoutDeteriorationComment" type="xs:string" minOccurs="0" maxOccurs="1" />
                        <xs:element name="SpecialProceduresProtectingHealthAndEnvironmentAtDismount" type="YesNoNaType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="SpecialProceduresProtectingHealthAndEnvironmentAtDismountComment" type="xs:string" minOccurs="0" maxOccurs="1" />
                        <xs:element name="InstallationOption" type="InstallationOptionType" minOccurs="0" maxOccurs="unbounded" />
                        <xs:element name="Disassembly" minOccurs="0" maxOccurs="1">
                            <xs:simpleType>
                                <xs:restriction base="xs:token">
                                    <xs:enumeration value="NotPossible" />
                                    <xs:enumeration value="DA1" />
                                    <xs:enumeration value="DA2" />
                                    <xs:enumeration value="DA3" />
                                    <xs:enumeration value="DA4" />
                                    <xs:enumeration value="DA5" />
                                    <xs:enumeration value="DA6" />
                                    <xs:enumeration value="DA7" />
                                    <xs:enumeration value="DA8" />
                                    <xs:enumeration value="DA9" />
                                    <xs:enumeration value="DA10" />
                                </xs:restriction>
                            </xs:simpleType>
                        </xs:element>
                        <xs:element name="SeparatePartsNaturally" type="xs:boolean" minOccurs="0" maxOccurs="1" />
                        <xs:element name="SupplierRestrictionsRecommendationsForRecoveryOrDisposal" type="xs:boolean" minOccurs="0" maxOccurs="1" />
                        <xs:element name="SupplierRestrictionsRecommendationsForRecoveryOrDisposalComment" type="xs:string" minOccurs="0" maxOccurs="1" />
                        <xs:element name="TakeBackAgreement" type="xs:boolean" minOccurs="0" maxOccurs="1" />
                        <xs:element name="TakeBackAgreementComment" type="xs:string" minOccurs="0" maxOccurs="1" />
                        <xs:element name="LeaseOption" type="xs:boolean" minOccurs="0" maxOccurs="1" />
                        <xs:element name="LeaseOptionComment" type="xs:string" minOccurs="0" maxOccurs="1" />
                        <xs:element name="HP1ToHP15OriginalProduct" type="xs:boolean" minOccurs="0" maxOccurs="1" />
                        <xs:element name="HP1ToHP15OriginalProductEwc" type="xs:string" minOccurs="0" maxOccurs="1" />
                        <xs:element name="HP1ToHP15AfterApplication" type="xs:boolean" minOccurs="0" maxOccurs="1" />
                        <xs:element name="HP1ToHP15AfterApplicationEwc" type="xs:string" minOccurs="0" maxOccurs="1" />
                        <xs:element name="MaterialRecoveryPossible" type="xs:boolean" minOccurs="0" maxOccurs="1" />
                        <xs:element name="EstimatedFutureRecoveryPotential01" type="IntervalType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="EstimatedFutureRecoveryPotential02" type="IntervalType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="EstimatedFutureRecoveryPotential03" type="IntervalType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="EstimatedFutureRecoveryPotential04" type="IntervalType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="EstimatedFutureRecoveryPotential05" type="IntervalType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="EstimatedFutureRecoveryPotential06" type="IntervalType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="EstimatedFutureRecoveryPotential07" type="IntervalType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="EstimatedFutureRecoveryPotential08" type="IntervalType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="EstimatedFutureRecoveryPotential09" type="IntervalType" minOccurs="0" maxOccurs="1" />
                        <xs:element name="EstimatedFutureRecoveryPotential10" type="IntervalType" minOccurs="0" maxOccurs="1" />
                    </xs:sequence>
                </xs:complexType>
            </xs:element>
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentInformation DocumentInformation (1) (1)
SupplierInformation SupplierInformation (1) (1)
VerifyingEntity VerifyingEntity 0 1
ProductInformation ProductInformation (1) (1)
ContentDeclaration ContentDeclaration (1) (1)
BuildingConstruction BuildingConstruction (1) (1)
Operations Operations (1) (1)
IndoorClimate IndoorClimate (1) (1)
ResourcePotential ResourcePotential (1) (1)
