Documentation for Digital Construction Material Passport (DCMP)
Definition Type: ComplexType
Name: IndoorEmissionType
Containing Schema: DCMP.xsd
Abstract

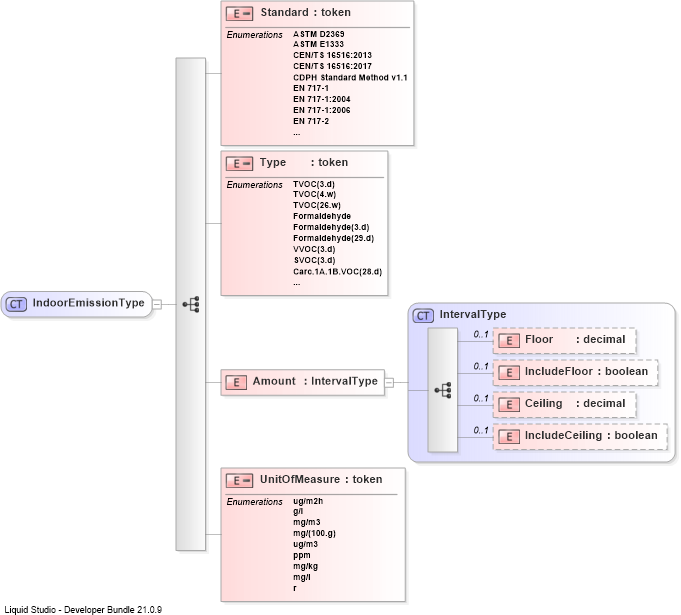

Collapse XSD Schema Diagram:
Drilldown into UnitOfMeasureDrilldown into IncludeCeilingDrilldown into CeilingDrilldown into IncludeFloorDrilldown into FloorDrilldown into IntervalTypeDrilldown into AmountDrilldown into TypeDrilldown into StandardXSD Diagram of IndoorEmissionType
Collapse XSD Schema Code:
<xs:complexType name="IndoorEmissionType">
    <xs:sequence>
        <xs:element name="Standard">
            <xs:simpleType>
                <xs:restriction base="xs:token">
                    <xs:enumeration value="ASTM D2369" />
                    <xs:enumeration value="ASTM E1333" />
                    <xs:enumeration value="CEN/TS 16516:2013" />
                    <xs:enumeration value="CEN/TS 16516:2017" />
                    <xs:enumeration value="CDPH Standard Method v1.1" />
                    <xs:enumeration value="EN 717-1" />
                    <xs:enumeration value="EN 717-1:2004" />
                    <xs:enumeration value="EN 717-1:2006" />
                    <xs:enumeration value="EN 717-2" />
                    <xs:enumeration value="EN 717-3" />
                    <xs:enumeration value="EN 120" />
                    <xs:enumeration value="EN 120:1992" />
                    <xs:enumeration value="EN 13999" />
                    <xs:enumeration value="EN 16402:2013" />
                    <xs:enumeration value="EN 16516" />
                    <xs:enumeration value="EN 16516:2017/FprA1" />
                    <xs:enumeration value="EN 16516:2018" />
                    <xs:enumeration value="EN 16516:2018-01" />
                    <xs:enumeration value="EN ISO 12460-3" />
                    <xs:enumeration value="ISO/DIS 12460-4" />
                    <xs:enumeration value="EN ISO 12460-5" />
                    <xs:enumeration value="ISO 10580:2010" />
                    <xs:enumeration value="ISO 11890-1" />
                    <xs:enumeration value="ISO 11890-1:2007" />
                    <xs:enumeration value="ISO 11890-1:2024" />
                    <xs:enumeration value="ISO 11890-2" />
                    <xs:enumeration value="ISO 11890-2:2013" />
                    <xs:enumeration value="ISO 11890-2:2020" />
                    <xs:enumeration value="ISO 17895:2005" />
                    <xs:enumeration value="ISO 16000-3:2011" />
                    <xs:enumeration value="ISO 16000-3:2013-01" />
                    <xs:enumeration value="ISO 16000-9:2006" />
                    <xs:enumeration value="ISO 16000-10:2006" />
                    <xs:enumeration value="ISO 16000-28:2012" />
                    <xs:enumeration value="JAS 233" />
                    <xs:enumeration value="JIS A 1460" />
                    <xs:enumeration value="NIOSH 6015:1994" />
                    <xs:enumeration value="RISE method 2302" />
                    <xs:enumeration value="RISE method 1598" />
                    <xs:enumeration value="EC 1907/2006 Annex XVII" />
                </xs:restriction>
            </xs:simpleType>
        </xs:element>
        <xs:element name="Type">
            <xs:simpleType>
                <xs:restriction base="xs:token">
                    <xs:enumeration value="TVOC(3.d)" />
                    <xs:enumeration value="TVOC(4.w)" />
                    <xs:enumeration value="TVOC(26.w)" />
                    <xs:enumeration value="Formaldehyde" />
                    <xs:enumeration value="Formaldehyde(3.d)" />
                    <xs:enumeration value="Formaldehyde(29.d)" />
                    <xs:enumeration value="VVOC(3.d)" />
                    <xs:enumeration value="SVOC(3.d)" />
                    <xs:enumeration value="Carc.1A.1B.VOC(28.d)" />
                    <xs:enumeration value="LCI" />
                    <xs:enumeration value="VOC" />
                </xs:restriction>
            </xs:simpleType>
        </xs:element>
        <xs:element name="Amount" type="IntervalType" />
        <xs:element name="UnitOfMeasure">
            <xs:simpleType>
                <xs:restriction base="xs:token">
                    <xs:enumeration value="ug/m2h" />
                    <xs:enumeration value="g/l" />
                    <xs:enumeration value="mg/m3" />
                    <xs:enumeration value="mg/(100.g)" />
                    <xs:enumeration value="ug/m3" />
                    <xs:enumeration value="ppm" />
                    <xs:enumeration value="mg/kg" />
                    <xs:enumeration value="mg/l" />
                    <xs:enumeration value="r" />
                </xs:restriction>
            </xs:simpleType>
        </xs:element>
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Standard Standard (1) (1)
Type Type (1) (1)
Amount Amount (1) (1)
UnitOfMeasure UnitOfMeasure (1) (1)
Collapse Derivation Tree:
Collapse References:
IndoorEmission
